THE “PUSH TO RELEASE” BUTTON SWINGAWAY DEVICE CAN BE USED IN A MUTLITUDE OF APPLICATIONS. THE MODULAR CONFIGURATION ALLOWS YOU TO SELECT THE ATTACHING COMPONENTS TO SUIT YOUR SPECIFIC APPLICATION AND ACCESSORY NEEDS.

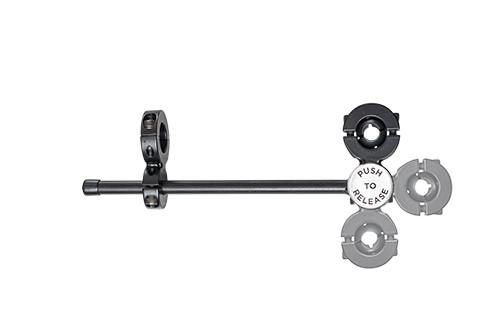

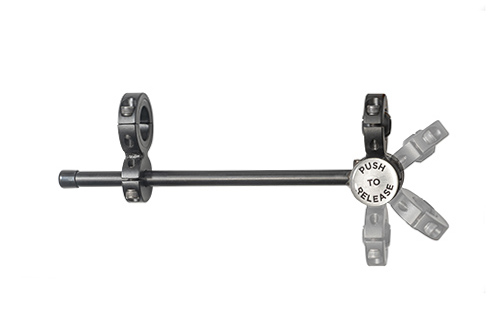

THE 7/16" ROUND BAR IS 8" LONG AND CENTRALLY WELDED ON THE SWINGAWAY DEVICE SO THAT IT CAN BE USED IN EITHER A LEFT OR RIGHT SIDE APPLICATION. THE STARTING ANGLE OF THE SWINGAWAY COLLAR END CAN BE ADJUSTED FOR PREFERRED POSITIONING WHILE STILL ALLOWING THE DEVICE TO SWINGAWAY FOR EASY CLIENT TRANSFERS.

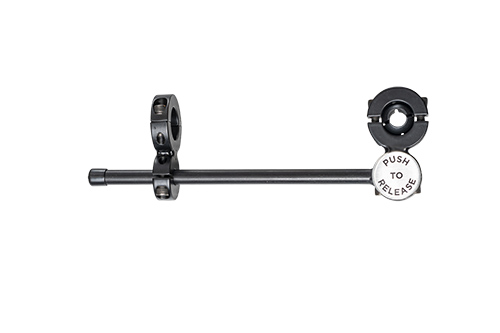

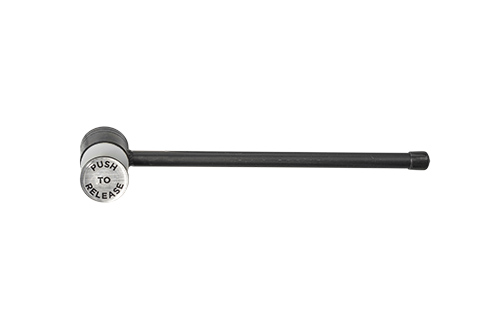

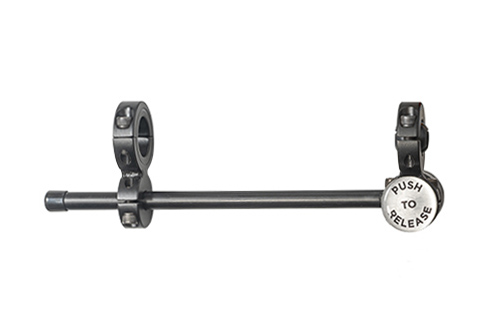

THIS IS THE SWINGAWAY DEVICE ONLY. COLLAR DEVICES SHOWN IN THUMBNAIL IMAGES ARE NOT INCLUDED.
CHOOSE FROM COLLAR-TO-COLLARS OR INSERT MOUNTS (NOT INCLUDED) FOR ATTACHING TO THE FRAME OR SEAT/BACK INSERT.
CHOOSE FROM PARALLEL OR PERPENDICULAR SWING-AWAY COLLAR ENDS BASED ON WHICH ACCESSORY DEVICES YOU INTEND TO USE IN THE APPLICATION.
SWINGAWAY COLLARS USED ON THE TERMINAL END (NOT INCLUDED)...
7/16" PARALLEL COLLARS...
16100, 16200, 16300, 16400, 16500, 16170
7/16" PERPENDICULAR COLLARS...
16105, 16205, 16305, 16405, 16505, 16175
